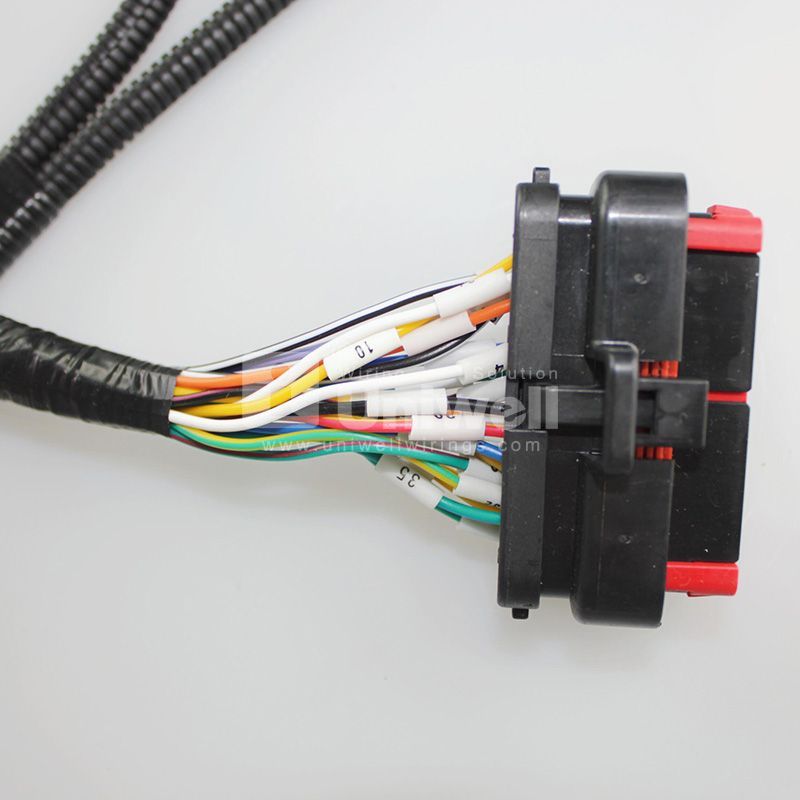

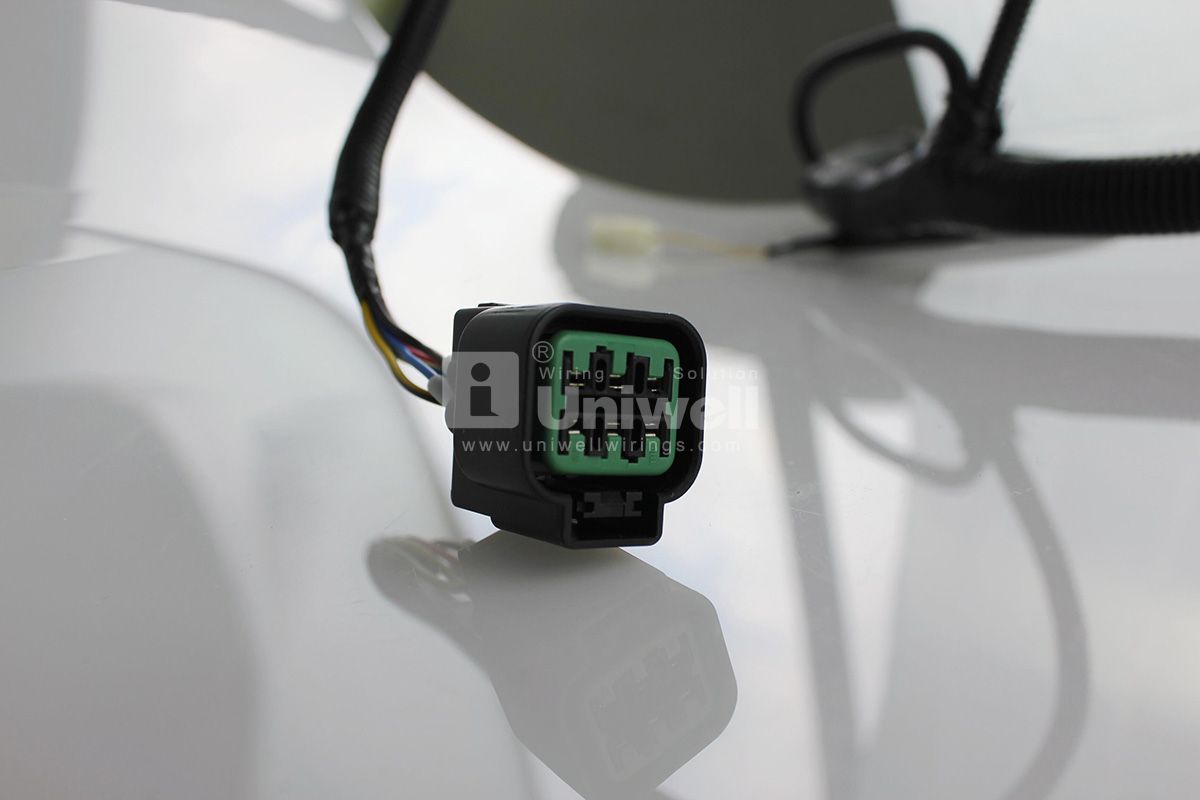

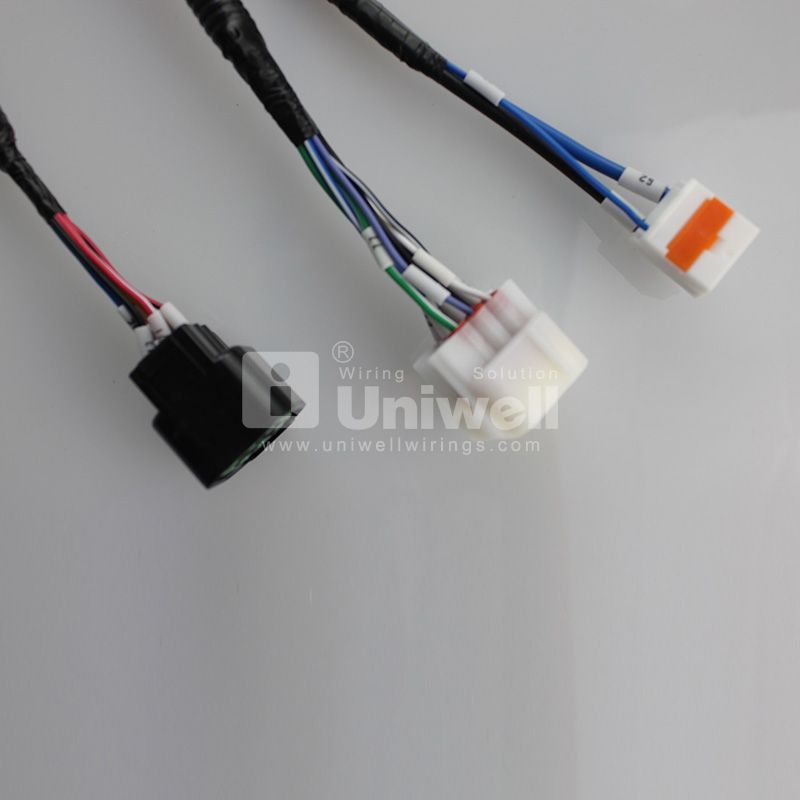

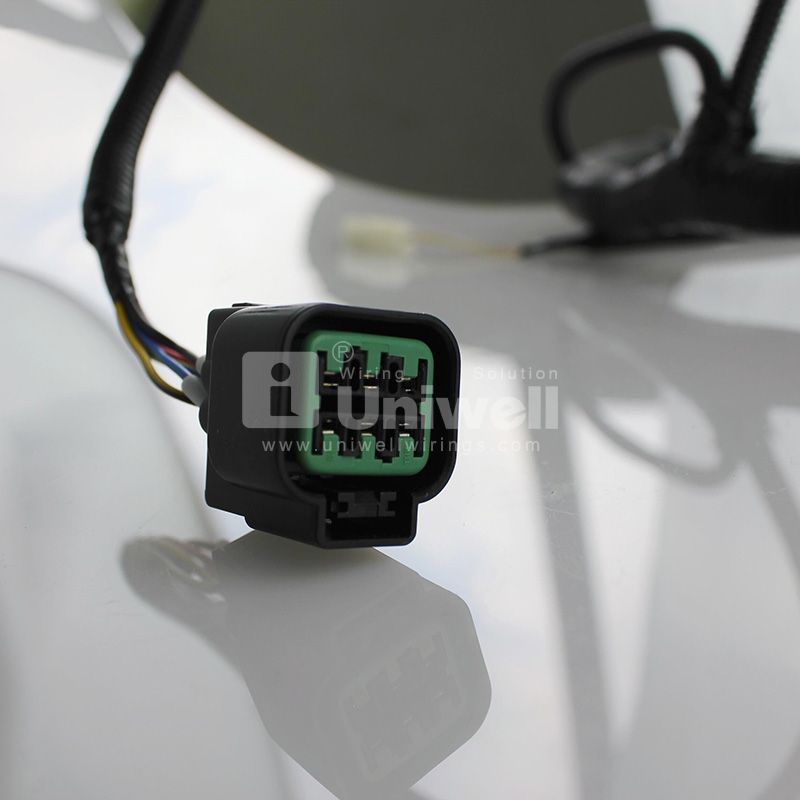

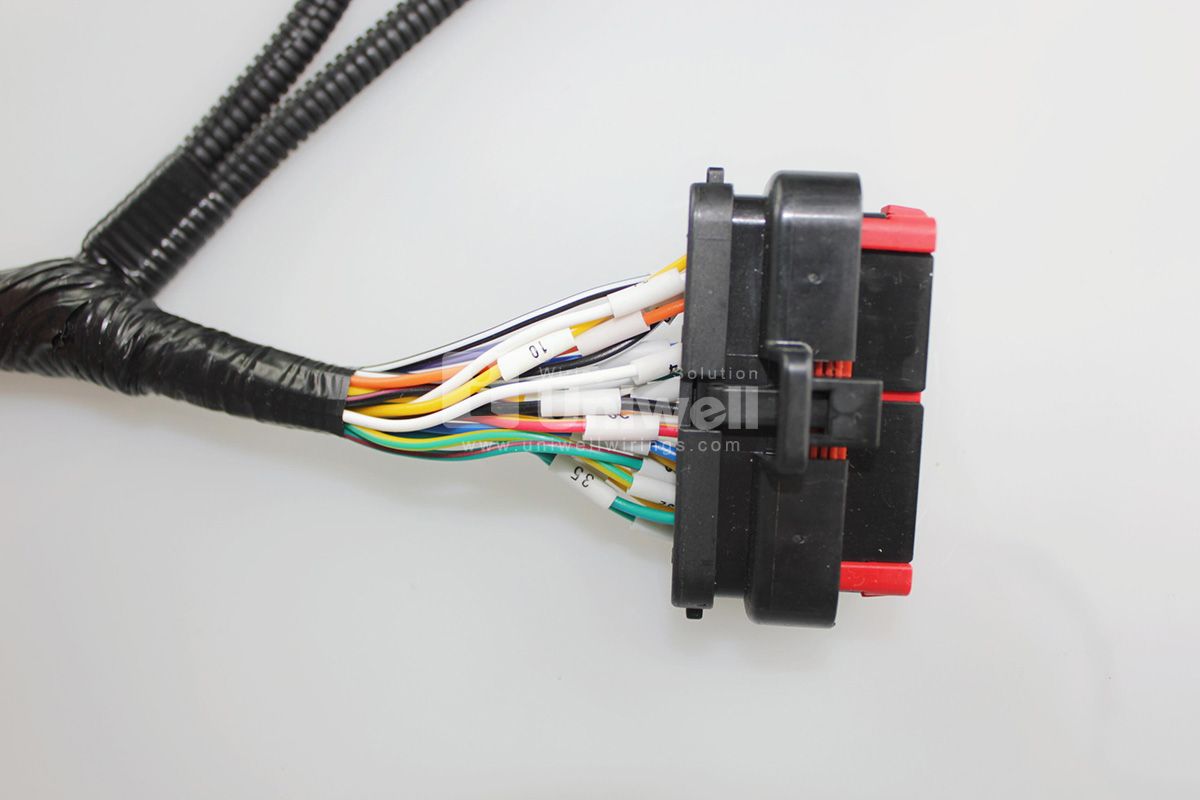

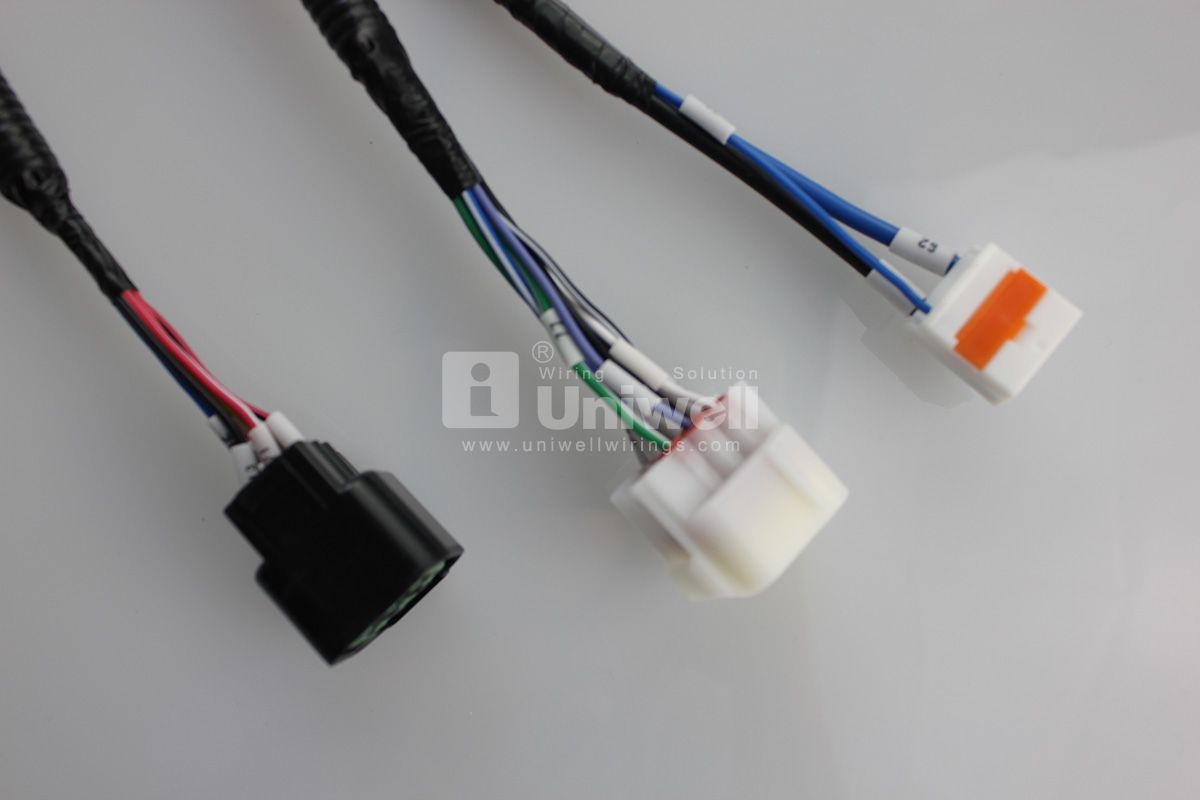

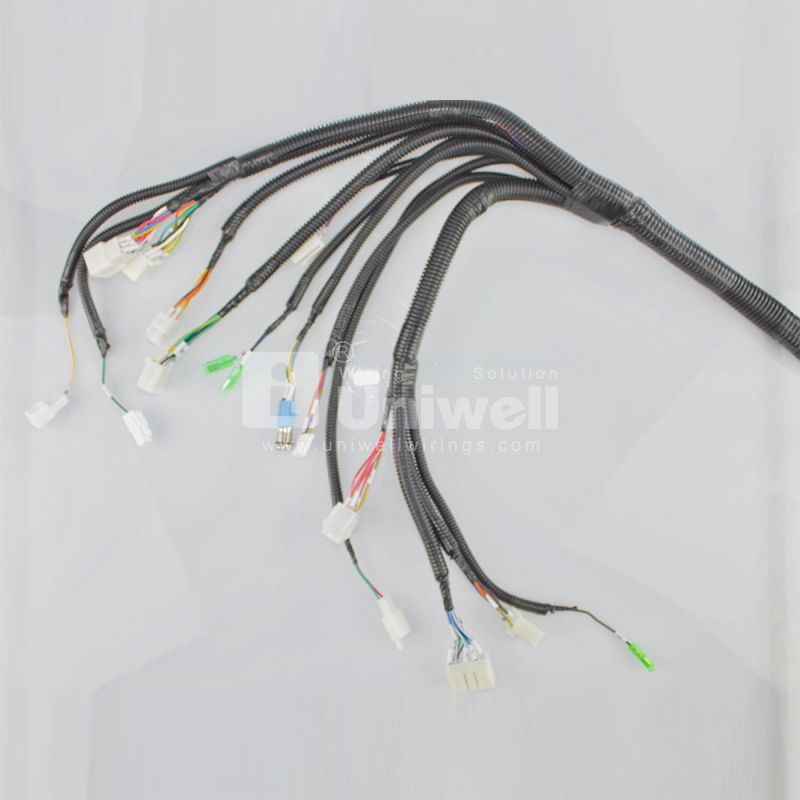

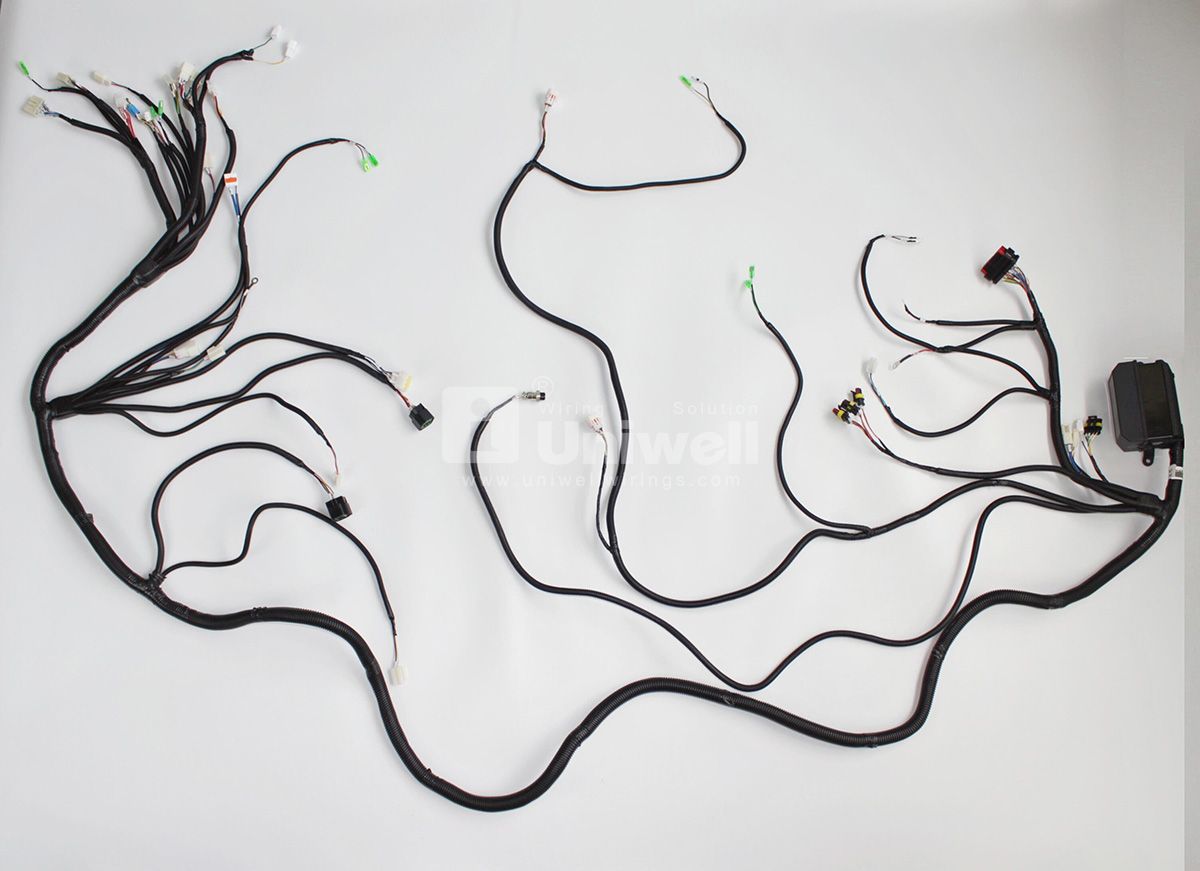

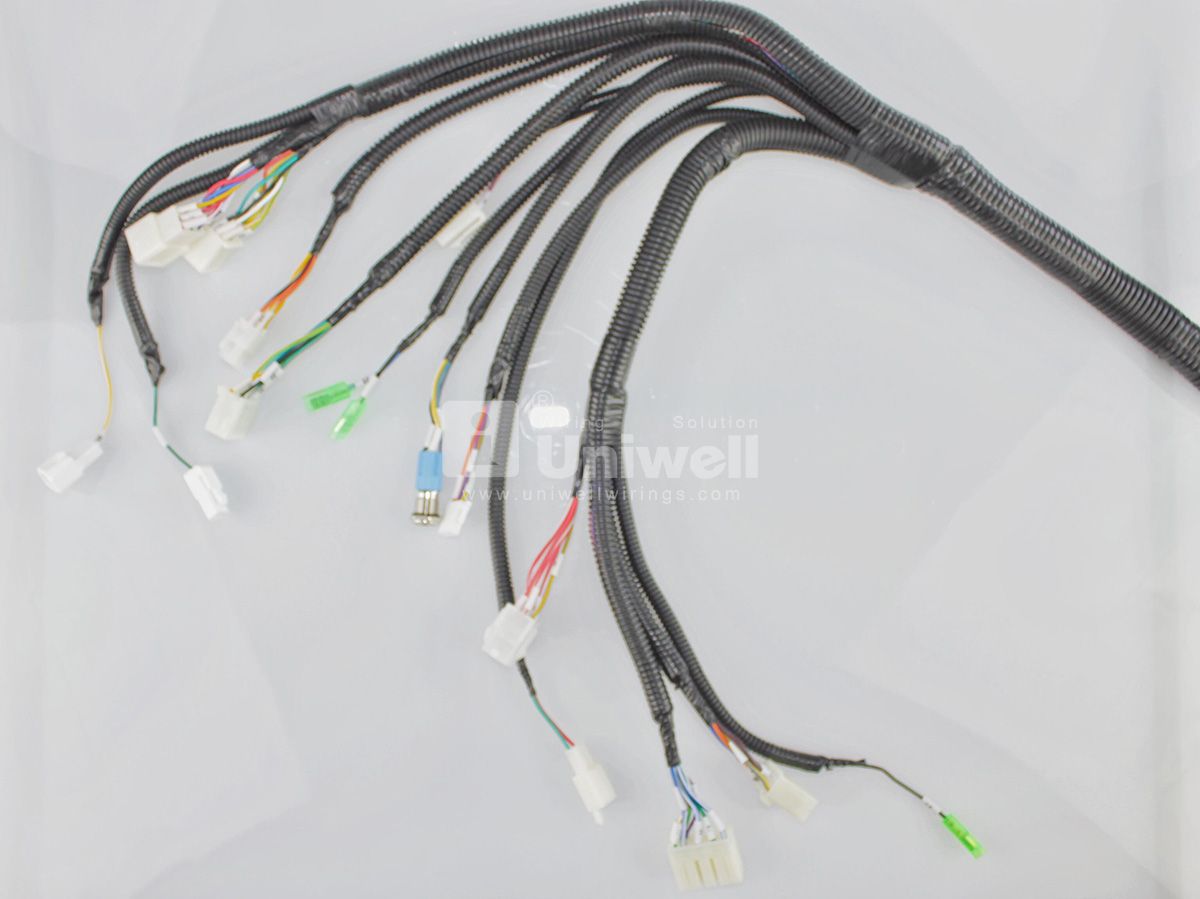

Custom Instrument Panel Wiring Harness for Low Speed Vehicles

Uniwell manufactures custom instrument panel wiring harnesses for low speed vehicles (LSVs), electric golf carts, utility vehicles, neighborhood electric vehicles and light electric transport carts. This automobile instrument panel harness is designed to connect dashboard displays, switches, indicators, lighting controls, warning systems, control modules and other electrical components inside the vehicle cabin.

As an OEM/ODM wire harness manufacturer, Uniwell provides finished cable assemblies that are ready for installation into vehicle dashboards or instrument panel systems. We manufacture according to customer drawings, samples, wiring diagrams, connector requirements and installation space, helping LSV manufacturers improve assembly efficiency, reduce wiring errors and ensure stable electrical performance.

Product Overview

The instrument panel harness is an important part of the vehicle electrical system. It organizes power lines, signal wires, terminals and connectors into one structured wiring assembly, allowing dashboard components to work safely and reliably.

For low speed vehicles, the dashboard area may include display screens, speed indicators, battery level indicators, key switches, start buttons, lighting controls, turn signal switches, warning lamps, horn switches, USB ports, accessory switches and communication modules. A properly designed dashboard wiring harness helps ensure stable signal transmission, clear circuit routing and easier maintenance during vehicle production and after-sales service.

Unlike standard loose wires, Uniwell’s Custom Wire Harness for Low Speed Vehicles are built as finished assemblies with connectors, terminals, sleeves, labels and quality testing. They are suitable for customers who need batch manufacturing and direct installation, not bulk raw wire sold by the meter.

Automobile Instrument Panel Harness Specifications

Designed for LSV Dashboard and Instrument Panel Systems

Low speed vehicles often have compact dashboard structures and limited internal wiring space. The instrument panel harness must be easy to install, correctly labeled and reliable under vibration, temperature change and daily operation.

Uniwell can customize dashboard wire harnesses for:

• Dashboard displays & Instrument clusters

• Battery level & Speed indicators

• Key switches and start buttons

• Lighting control & Turn signal switches

• Brake warning indicators & Horn switches

• USB and accessory power ports

• Control modules & Communication or signal modules

• Warning lamps and status indicators

Each harness can be designed according to the actual vehicle structure, circuit layout and dashboard installation space.

Why Custom Instrument Panel Wiring Harnesses Matter

The dashboard is one of the most frequently used electrical areas in a low speed vehicle. Poor wiring layout may cause difficult installation, unstable signals, loose connectors or maintenance problems.

A custom instrument panel wiring harness helps:

• Improve dashboard assembly efficiency

• Reduce wiring mistakes during production

• Maintain stable signal and power transmission

• Simplify connector identification and maintenance

• Improve fit with vehicle dashboard structure

• Reduce loose wires and messy routing

• Support consistent batch production

• Improve long-term electrical reliability

For electric golf carts, NEVs and utility vehicles, a ready-to-install dashboard harness can help manufacturers control quality and reduce assembly time on the production line.

Engineering-Led Customization

Uniwell does not only produce according to drawings. Our engineering team can support design review, sample development and production optimization for custom instrument panel wiring harness projects.

Our engineering support includes:

• Drawing and sample review

• Dashboard installation space confirmation

• Connector and terminal matching

• Wire gauge and circuit load review

• Branch routing optimization

• Label and connector identification design

• Material and protection selection

• Prototype sample development

• Mass production process planning

• Quality inspection documentation

If your project already has a circuit diagram or sample harness, we can manufacture according to your requirements. If your design still needs improvement for production, we can help review possible risks such as excessive bending, unsupported branches, difficult installation or insufficient strain relief.

Connector and Terminal Options

Connector and terminal selection is critical for dashboard harness reliability. Uniwell can use customer-specified connectors or provide equivalent connector solutions according to electrical and mechanical requirements.

Available options may include:

• TE, Molex, Amphenol, LEMO, and JST connectors

• JCTC terminals & Flashboard terminals

• Tin-plated phosphor bronze terminals

• Board-to-wire & Wire-to-wire connectors

• Automotive sealed connectors

• Customer-specified connector brands or equivalents

Connector selection depends on current rating, signal type, installation space, mating parts, vibration resistance and service requirements.

Processing and Manufacturing Capabilities

Uniwell manufactures instrument panel harnesses using controlled processing and assembly methods to ensure consistent quality.

Our manufacturing capabilities include:

• Wire cutting and stripping

• Terminal crimping & Soldering when required

• Molding, forming, and connector assembly

• Anti-static process & Branch routing

• Harness taping, sleeve, and heat shrink protection

• Cable labeling & Assembly board production

• Prototype and batch production

• 100% electrical testing before delivery

For complex dashboard harnesses, we can combine manual assembly with semi-automated processing to balance flexibility, quality and production efficiency.

Material and Protection Options

Instrument panel wiring harnesses may need to resist vibration, abrasion, heat, moisture and repeated vehicle operation. Uniwell can recommend suitable materials based on project requirements.

Material and protection options may include:

• PVC / XLPE: Insulation options

• TPE / TPR: Flexible materials

• PU: Jacket or sleeve protection

• Bundling & Routing: Heat shrink tubing, protective tape, corrugated conduit, and braided sleeve

• Safety & Resilience: Flame-retardant, abrasion-resistant, and moisture-resistant protection

• Special Handling: Anti-static process when required

Material selection is based on voltage, current, temperature, flexibility, installation space, mechanical stress and operating environment.

Applications

This custom instrument panel wiring harness can be used in various low speed vehicle and light electric vehicle platforms. Typical applications include:

• Electric golf carts & Utility vehicles

• Neighborhood electric vehicles (NEVs)

• Resort shuttle carts & Campus transport vehicles

• Park and community patrol vehicles

• Industrial maintenance carts

• Light electric transport vehicles

• Personal mobility & Small electric service vehicles

For these vehicles, the instrument panel harness helps connect the dashboard electrical system with the main vehicle wiring system, improving installation efficiency and circuit reliability.

Quality Control and Testing

Uniwell applies strict quality control to every custom wire harness project. All products are tested before delivery to help ensure correct circuit connection and stable performance.

Why Choose Uniwell

Uniwell Electronic Wire & Cable provides OEM/ODM custom wire harness manufacturing for low speed vehicles and other electrical equipment applications. For instrument panel harness projects, we focus on stable quality, engineering support and production-ready assembly.

Our advantages include:

• Custom instrument panel wiring harness manufacturing

• OEM/ODM support from sample to mass production

• Ready-to-install dashboard cable assemblies

• Connector, terminal, label and sleeve customization

• Engineering support for drawings and samples

• Crimping, molding, forming and assembly capability

• Anti-static processing when required

• 100% testing before delivery

• ISO 9001:2015 quality control system

• Flexible MOQ for sample and trial orders

What Information Should Buyers Provide?

To help us manufacture the right instrument panel wiring harness for your vehicle project, please provide as much of the following information as possible:

• Vehicle type

• Wiring diagram or sample harness

• Dashboard layout or installation space

• Connector models or connector photos

• Wire length and branch layout

• Voltage and current requirements

• Required terminals and connector brands

• Operating environment & Protection requirements

• Labeling & Estimated quantity

• Testing or documentation requirements

If you only have a sample or basic electrical requirement, Uniwell can help review the harness structure and recommend a practical OEM/ODM manufacturing solution.

FAQ

What is an instrument panel wiring harness?

An instrument panel wiring harness is a cable assembly used to connect dashboard electrical components such as displays, switches, indicators, lighting controls, warning lamps and control modules.

Can this harness be used for low speed vehicles?

Yes. This product can be customized for low speed vehicles, electric golf carts, utility vehicles, neighborhood electric vehicles and light electric transport vehicles.

Can you manufacture according to our sample?

Yes. Uniwell can manufacture custom instrument panel wire harnesses according to samples, drawings, wiring diagrams or connector requirements.

Can you customize connectors and terminals?

Yes. We can use TE, Molex, Amphenol, LEMO, JST, JCTC or customer-specified connector brands and equivalent alternatives.

Do you sell bulk wire or finished harness assemblies?

Uniwell mainly provides finished OEM/ODM wire harnesses and cable assemblies. We are not a supplier of bulk raw wire sold by the meter.

Can you support small trial orders?

Yes. For sample and trial orders, the MOQ can be 50–200 pieces depending on the project and product complexity.

Are the harnesses tested before delivery?

Yes. All products are tested before delivery, including electrical and visual inspection according to project requirements.

Can you support design and engineering services?

Yes. Uniwell provides engineering and design support, including drawing review, connector matching, material selection and production documentation.

Need a custom instrument panel wiring harness for low speed vehicles or electric golf carts? Share your drawing, sample, connector requirement, dashboard layout and order quantity with Uniwell. Our team will help provide a suitable OEM/ODM wire harness manufacturing solution for your vehicle platform.
